ISK Dolphin Sound DS-2 DS2 Audio Interface Soundcard Mixer Recording

Description

ISK Dolphin Sound DS-2 Audio Interface Soundcard Mixer Recording

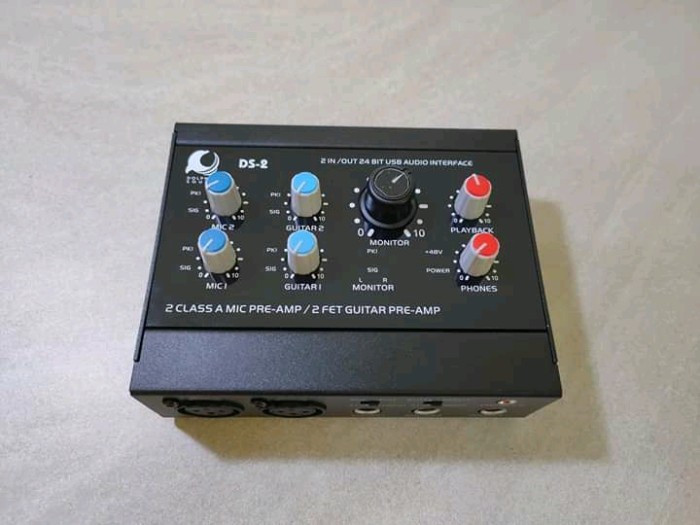

ISK DS-2 Soundcard Audio Interface

General Specifications

Input Channels:
MIC: 2
GUITAR: 2
USB PLAYBACK: 1

Output Channels:
MAIN L / R OUT: 1
PHONES: 2
Bus Stereo : 1

Input Channel Function:
MIC: – Gain max 50dB
– +48V Phantom Power, LED
– 2 point LED meter

GUITAR: – Gain max 46dB
– 2 point LED motor;

USB Audio: – Stereo Input / Stereo Output;
– USB Audio Class 2.0 compliant;
– Sampling Frequoncy: Max 96 kHz, Bit Depth: 24-bit;
– eector;

Level Meter : 2×2 point LED meter;
Max output level : 3 Vrms;
Frequency response : 0,5 dB, 20Hz – 20KHz;
Dynamic Range : 98 dB;
THD+N @ 1KHZ : <0.03%; Stereo Crosstalk : 92 dB; Power Requirements : DC 5 V, 500 mA Power Consumption : ax. 2.5 W Dimensions (W X H X D) : 130 mm x 103 mm x 38 mm Net Weight : 0.58 kg
