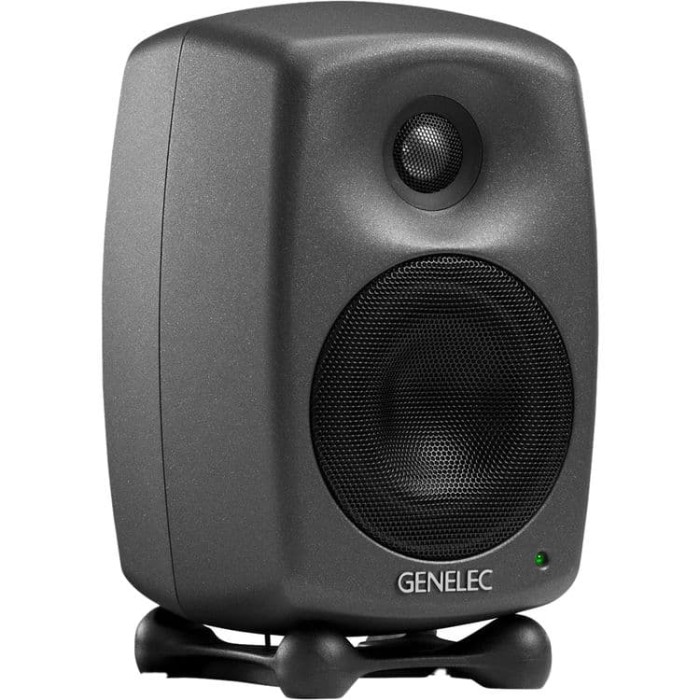

Genelec 8020D Studio Monitor (Producer Finish) Dark Grey

Description

Genelec 8020D Studio Monitor (Producer Finish) Dark Grey

Spesifikasi
Cut-Off Frequency
Lower: 56 Hz at -6 dB
Upper: 25 kHz at -6 dB

Frequency Response
62 Hz to 20 kHz (2.5 dB)
SPL 100 dB SPL maximum (short-term sine-wave acoustic output on axis in half-space, averaged from 100 Hz to 3 kHz at 3.3′ / 1 m)
93 dB SPL maximum (long-term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 3.3′ / 1 m)
Peak Output Capacity 107 db maximum peak acoustic output (per pair in listening room with music material at 3.3′ / 1 m)

Self-Generated Noise Level
5 dB (in free field at 3.3′ / 1 m on axis (A-weighted))

Harmonic Distortion
< 3% (at 85 dB SPL at 3.3' / 1 m on axis, 50 to 200 Hz) < 0.5% (at 85 dB SPL at 3.3' / 1 m on axis, higher than 200 Hz) Drivers Bass: 4" / 105 mm cone Treble: " / 19 mm metal dome Both drivers are magnetically shielded Amplifier Bass Amplifier Short-Term Output Power: 50 W Treble Amplifier Short-Term Output Power: 50 W Long-term output power is limited by driver protection circuitry THD 0.05% at nominal output Crossover Frequency Bass/Treble: 3 kHz Digital Controls GLM Software Frequency Response Adjustment Parametric Notch Filters: 16x Shelving Filters: 2 x LF and 2 x HF System Room Response Calibration: Genelec GLM AutoCal, GLM manual, standalone Mains Voltage 100 to 240 VAC 50/60 Hz Power Consumption Idle: 3 W Standby: < 0.5 W Full Output: 60 W Analog Input XLR female, balanced (pin 1 ground, pin 2 positive, pin 3 negative) Input Level -6 dBu at volume control max (for 100 dB SPL at 3.3' / 1 m) Input Impedance 10 kOhms Sensitivity -12 dB (constantly variable, control range relative to maximum output) Controls Treble Tilt Control (operating range): 0 to -2 dB at 15 kHz Desktop 200-Hz Control: -4 dB at 200 Hz Bass Roll-Off Control: 0 to -4 dB at 65 Hz
